VRC

VRC Series

Centrifugal Roof Mounted Exhaust

This series is available in single-phase and 3-phase power. Single-phase power uses external rotor motors with speed control. 3-phase power requires a step speed controller with external rotor motors.

Enquire about this product Add to Enquiry List Remove from Enquiry List

Model: VRC

Order Code: See technical data for further details

This series is available in single-phase and 3-phase power.

Single-phase power uses external rotor motors with speed control.
3-phase power requires a step speed controller with external rotor motors.

Model	Code	Power kW	FLA	Phase	Speed RPM	dBA @ 3m
VRC190-2E	ALV841	0.052	0.23	1	2350	40
VRC220-2E	ALV1634	0.085	0.38	1	2600	51
VRC220-4E	ALV891	0.05	0.25	1	1380	36
VRC280-4E	ALV847	0.078	0.35	1	1420	43
VRC280-6E	ALV848	0.038	0.35	1	960	35
VRC315-4E	ALV849	0.115	0.5	1	1430	45
VRC315-6E	ALV880	0.06	0.5	1	960	39
VRC355-4E	ALV881	0.245	1.12	1	1420	45
VRC355-6E	ALV882	0.07	0.31	1	870	39
VRC400-4E	ALV883	0.48	2.4	1	1370	49

VRC DATA

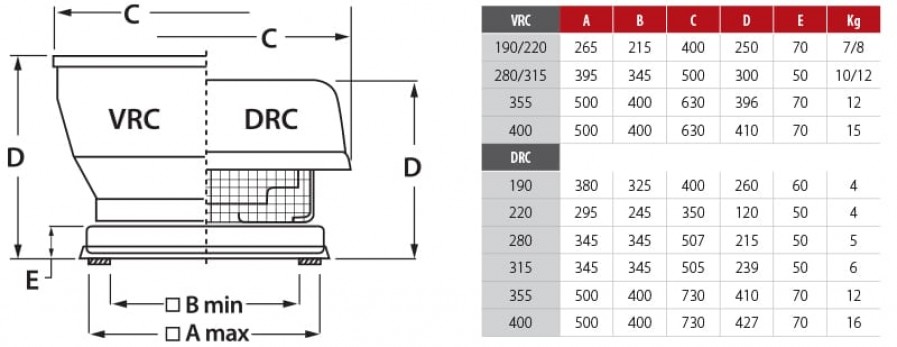

VRCDRC dims
