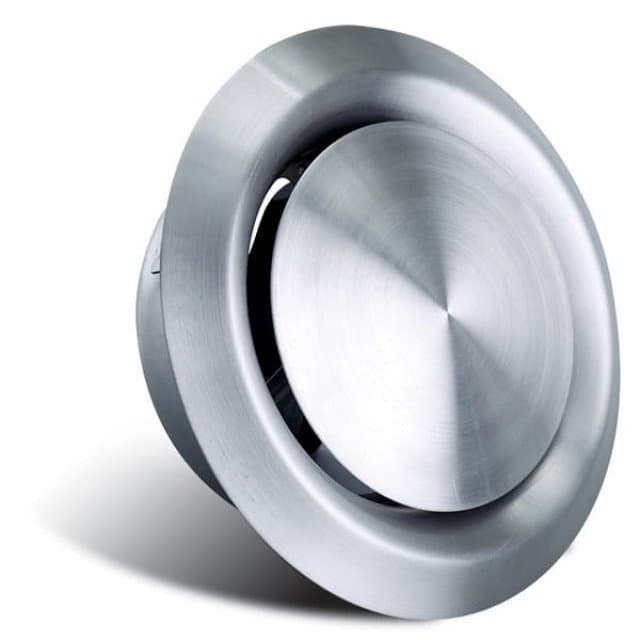

Stainless Steel Cone Grille
Takes air from surrounding surfaces and not directly below.
Ideal for heat, smoke and vapour extraction / transfer
Model: CG Range
Order Code: See technical data for further details
For desired control, screw the inverted cone
| Model | Code | Duct Size | A | B | C | D |
| ALVCG100 | ALV227 | 100 | 140 | 98 | 45 | 9 |
| ALVCG125 | ALV228 | 125 | 175 | 123 | 45 | 12 |
| ALVCG150 | ALV229 | 150 | 220 | 148 | 60 | 20 |
| ALVCG200 | ALV230 | 200 | 275 | 198 | 65 | 20 |
Commonly used for air intake, the design of these ceiling diffusers accepts air from surrounding surfaces and not directly below. This makes it ideal for heat, smoke and vapour extraction/ transfer.
