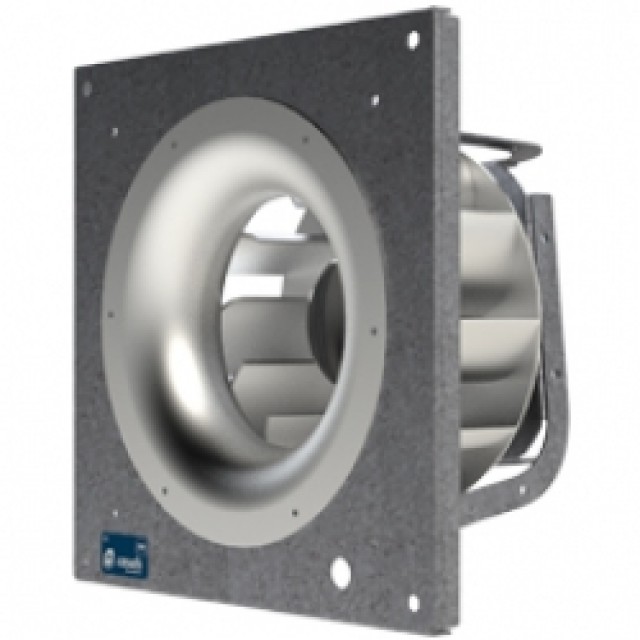

EC PLUG FAN (ENKELFAN EEC)
EC PLUG FAN
- Plug-type fan with a self-cleaning impeller with back curved blades (backward), high performance.
and single inlet, direct driven. - Dynamically balanced to minimize noise and vibration.
- Polyamide reinforced impeller for models 155 and 190 and aluminium plate for the rest.
- High efficiency, low noise external rotor EC motor.
- Speed control through a 0-10V or PWM signal. Single-phase 230V 50 power supply for models 155 to 310 and three-phase 400V 50 for sizes 355 and 450.
- IP44 motor and class B insulation.
- Frame and motor support arms made of galvanized steel.
APPLICATIONS
• Air conditioners, plenums.
• Working temperature ranges from -20ºC to 60ºC.
| Model | RPM | V | Hz | kW | Phase | Air flow m3/h |
In-duct dBA@3m | Weight Kg |
| ENKELFAN 155 EEC | 3950 | 230 | 50 | 0.06 | 1 | 460 | 46 | 3 |
| ENKELFAN 190 EEC | 3570 | 230 | 50 | 0.1 | 1 | 760 | 49 | 4.5 |
| ENKELFAN 250 EEC | 2500 | 230 | 50 | 0.15 | 1 | 1640 | 51 | 7.5 |
| ENKELFAN 310 EEC | 2350 | 230 | 50 | 0.36 | 1 | 3160 | 55 | 13 |
| ENKELFAN 355 EEC | 2100 | 400 | 50 | 0.99 | 3 | 4890 | 55 | 17.5 |
| ENKELFAN 450 EEC | 1450 | 400 | 50 | 1.01 | 3 | 6955 | 48 | 26 |
