KMV 18

AVKV Series

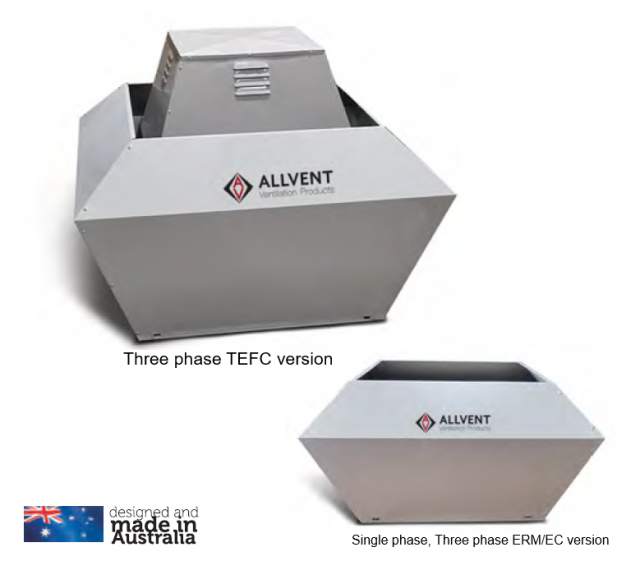

Motors are mounted out of the air streamWind bands are secured with clip fasteners to allow easy access for servicing and cleaning.

High performance, all metal fans for use in kitchen exhaust and general ventilation applications.

Enquire about this product Add to Enquiry List Remove from Enquiry List

Model: AVKV Range

Order Code: See technical data for further details

Construction

Fabricated from powder coated galvanised steel in compliance with AS/NZS1668.1:1998 for kitchen exhaust systems.
Single-phase power motors drive high performance, backward curve, centrifugal impellers – fully speed controllable.
Three-phase power use TEFC motors and are VSD compatible.
Bushfire rated available.
Motor options available ERM, TEFC, EC, Class H, Class F & High Efficiency type.
Available in optional Colourbond^™ colours.
Performance Standard ANSI / AMCA 210-99

Single Phase ERM - 2 Pole

Model	Dia ⌀	V	Hz	kW	Amps	Max (L/s)	In-duct dBA@3m
AVKV190-2EE	190	240	50	0.07	0.29	150	45
AVKV220-2EE	225	240	50	0.1-0.16	0.43-0.71	230-355	48
AVKV250-2EE	250	240	50	0.21	0.94	450	50

Single Phase ERM - 4 Pole

Model	Dia ⌀	V	Hz	kW	Amps	Max (L/s)	In-duct dBA@3m
AVKV220-4EE	225	240	50	0.04	0.22	140	33
AVKV250-4EE	250	240	50	0.05	0.24	210	37
AVKV280-4EE	280	240	50	0.11	0.53	375	38
AVKV315-4EE	310	240	50	0.14	0.62	550	45
AVKV355-4EE	355	240	50	0.27	1.3	800	45
AVKV400-4EE	400	240	50	0.43	1.9	1150	46
AVKV450-4EE	450	240	50	0.73	3.3	1400	54
AVKV500-4EE	500	240	50	1.3	5.8	2300	53

Single Phase ERM - 6 Pole

Model	Dia ⌀	V	Hz	kW	Amps	Max (L/s)	In-duct dBA@3m
AVKV315-6EE	315	240	50	0.08	0.42	380	34
AVKV355-6EE	355	240	50	0.1	0.5	550	39
AVKV400-6EE	400	240	50	0.17	0.83	780	38
AVKV450-6EE	450	240	50	0.3	1.4	1100	43
AVKV500-6EE	500	240	50	0.45	2.2	1530	44
AVKV560-6EE	560	240	50	0.66	3	2190	47

Three Phase - 4 Pole (TEFC)

Model	Dia ⌀	V	Hz	kW	Amps	Max (L/s)	In-duct dBA@3m
AVKV315-4DD	315	415	50	0.37	1.03	650	46
AVKV355-4DD	355	415	50	0.37	1.03	950	51
AVKV400-4DD	400	415	50	0.55	1.26	1300	54
AVKV450-4DD	450	415	50	1.1	2.37	2000	58
AVKV500-4DD	500	415	50	1.5	3.19	2700	59
AVKV560-4DD	560	415	50	3	5.9	3800	64
AVKV630-4DD	630	415	50	5.5	10.3	5450	70

Three Phase - 6 Pole (TEFC)

Model	Dia ⌀	V	Hz	kW	Amps	Max (L/s)	In-duct dBA@3m
AVKV400-6DD	400	415	50	0.55	1.66	950	44
AVKV450-6DD	450	415	50	0.55	1.66	1320	49
AVKV500-6DD	500	415	50	0.75	1.87	1850	50
AVKV560-6DD	560	415	50	1.1	2.62	2600	53
AVKV630-6DD	630	415	50	2.2	4.83	3700	60
AVKV710-6DD	710	415	50	3	6.47	5300	62

Three Phase - 8 Pole (TEFC)

Model	Dia ⌀	V	Hz	kW	Amps	Max (L/s)	In-duct dBA@3m
AVKV630-8DD	630	415	50	0.75	2.2	2700	53
AVKV710-8DD	710	415	50	1.1	2.91	3900	55
